Locosc Precision LP7515-4, LCD Scale Indicator Display

Write a Review

Your Price: $84.95

Retail Price:$115.00

You Save:$30.05(26%)

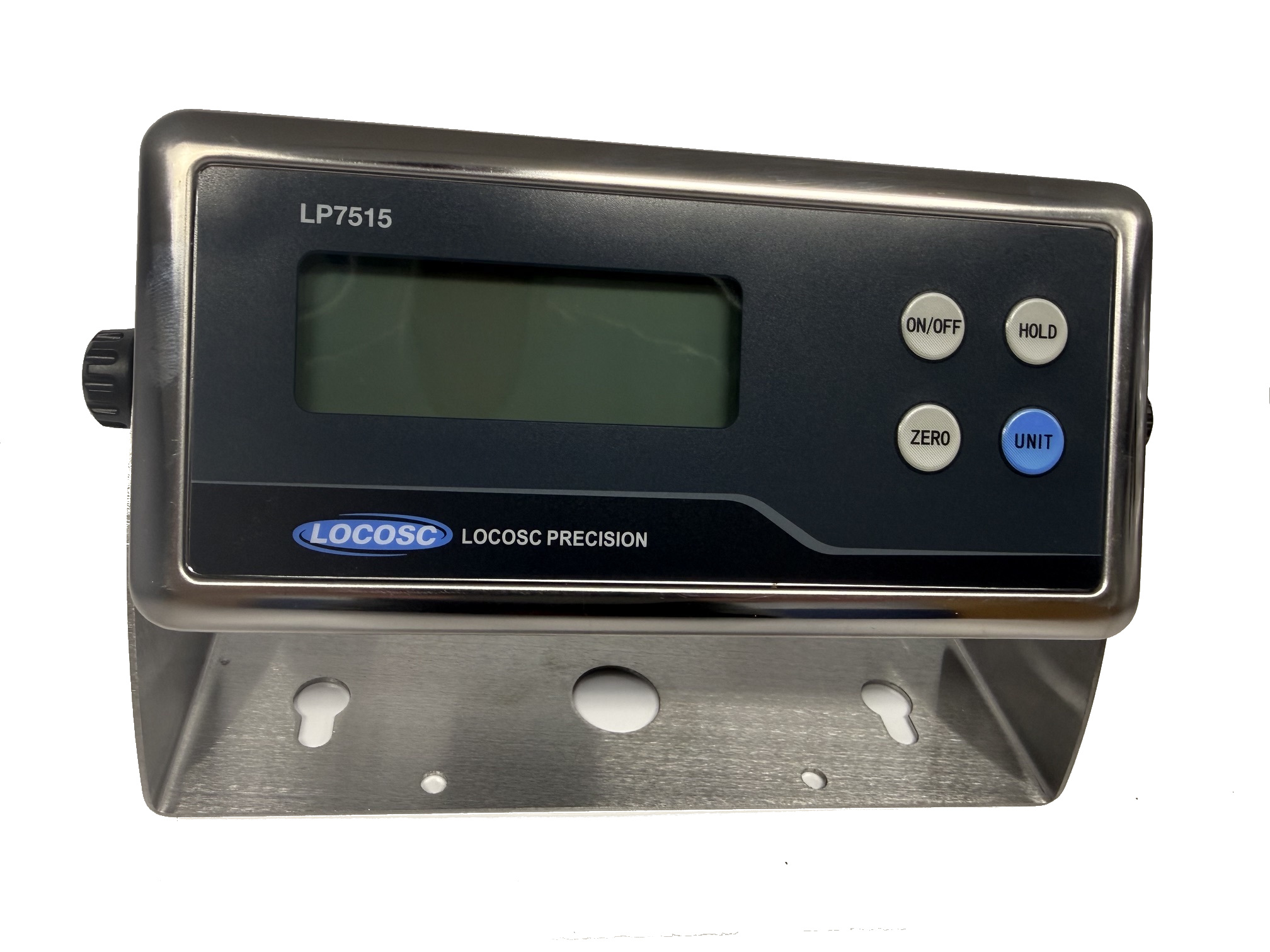

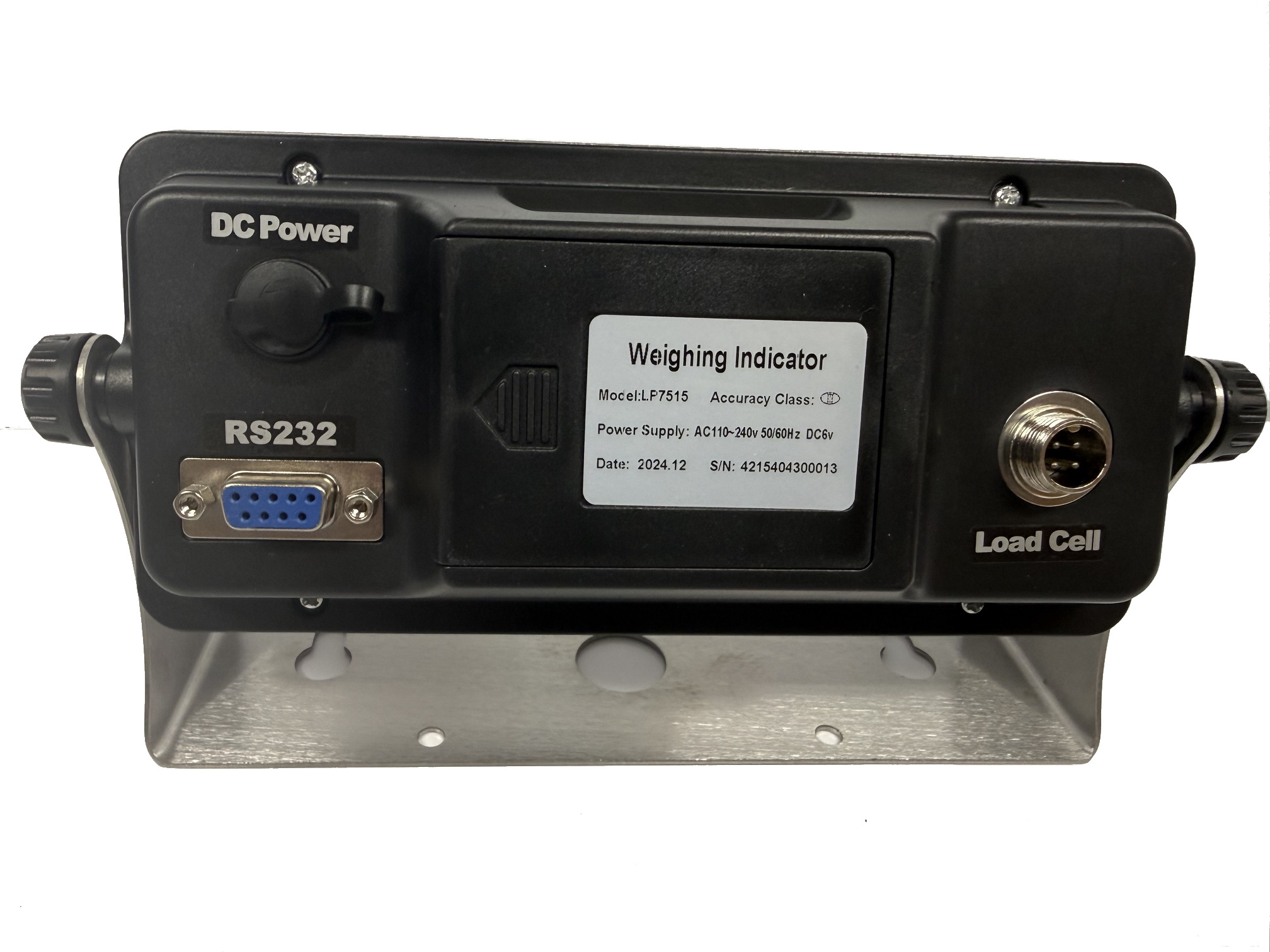

Locosc Precision LP-7515-4 Scale Indicator with Back-Lit LCD Display and 4 Pin Connector

Part Number: LP-7515-4

Scale Cable

15' ', 4 Pin Cable (+$25.00)

The item you are trying to purchase is currently out of stock.
Please enter your name, email, and phone number below.
We will contact you as soon as this product is available.

Name: *

Email: *

Phone: *

Verification: *

Type the word above...

Quantity

Description
Spec Sheets & Manuals

Locosc Precision LP-7515-4 Scale Indicator with Back-Lit LCD Display and 4 Pin Connector

The Locosc Precision LP-7515-4 Scale Indicator with a 4-pin connector is an "Easy to Read" 6 digit Back-Lit LCD Display that is perfect for NON-NTEP applications even in dimly lit areas. Simple to use, 4-button keypad makes the 7515 fast and efficient for most weighing applications. A robust metal case ensures years of durable use. Powered up to 100 hours using (3) AAA Batteries with the back light off and up to 30 hour using the back light. An AC Adapter is also included for when an outlet is available to power the LP7515 Display.

LP-7515 Specs:

Display	6 digit 0.7" tall LCD display with backlight
Units	lb, kg primary); oz (secondary)
Accuracy Class	OIML III, n=3000e
Resolution	120,000 dd indusrial; 10,000 dd HB44
Load Cell	4 load cells of 350 O maximum
Load Cell Excitation	5 + 0.5VDC
Display Resolution	Up to 1/15,000
Operating Temperature	14 ºF to 104 ºF (-10 ºC to +40 ºC) < 90%RH
Weight	1.2 lbs
Display Increment	Selectable 1, 2, 5, 10, 20, 50
Decimal Point	Selectable 1, 2, 3, 4, decimal places
Tare Range	2% - 100% max. capacity
Initial Zero Range	+ 10% max. capacity
Manual Zero Range	+ 2% max. capacity

Locosc Precision LP-7515 Indicator User Manual
